What is the difference between a hitch pin and a clevis pin?

If you've ever worked with machinery or towing equipment, you may have encountered both hitch pins and clevis pins. Understanding the distinctions between these two types of fasteners is essential for selecting the right one for your specific needs. Let’s dive into the differences and unique applications for each.

The difference between a hitch pin and a clevis pin lies primarily in their design and usage. While both serve the purpose of securing machinery and equipment, they are utilized in different contexts and offer distinct features.

Design and Construction

Hitch pins and clevis pins differ remarkably in their design. Hitch pins are generally straight cylindrical rods with one or both ends possessing a hole to accommodate a locking mechanism such as a clip or cotter pin. They are commonly used in agricultural and towing applications to secure implements and attachments.

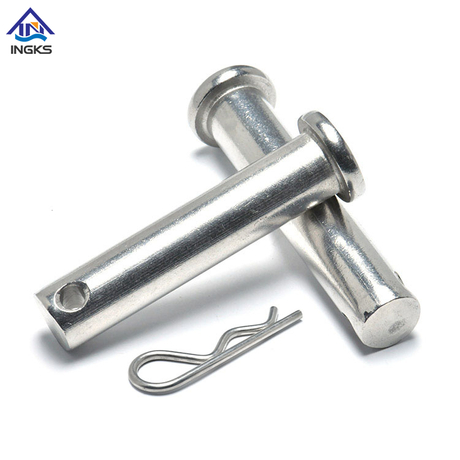

Clevis pins, on the other hand, have a different structure. They feature a cylindrical body with a head at one end, similar to a bolt. The other end typically has a hole to accommodate a split pin or cotter pin, ensuring the clevis stays in place. The head prevents the pin from passing through the connected components entirely, making it useful in mechanical linkages and applications requiring shear strength.

Usage and Applications

Hitch Pins:

Hitch pins are predominantly used in towing and agricultural applications. They are ideal for securing trailers to towing vehicles, attaching equipment such as mowers, and connecting various types of farming implements. The main advantage of a hitch pin is its ease of use—it's simple to insert and remove, making it perfect for tasks that require frequent adjustments or attachments.

Clevis Pins:

Clevis pins, with their robust construction and specific design, find usage in different arenas. They are often used in rigging, lifting, and where mechanical linkage is needed, such as in the joints of machinery. Because clevis pins provide shear strength, they are ideal for situations where rotational movement within the connected pieces is required.

Strength and Durability

When it comes to strength and durability, clevis pins generally take the lead. The head of the clevis pin provides additional strength, making it suitable for heavy-duty tasks and mechanical demands. On the other hand, while hitch pins are strong and durable, they are primarily designed for ease of use and quick implementation rather than bearing high loads or intense mechanical stress.

Locking Mechanism

The locking mechanisms of hitch pins and clevis pins also differ significantly, contributing to their distinct applications. Hitch pins often use clips or cotter pins that can be quickly inserted and removed, making them convenient for temporary connections and frequent changes.

Clevis pins, however, use more stable locking mechanisms such as split pins or cotter pins that ensure the pin remains firmly in place. This setup is essential in applications where the pin must remain securely fastened over long periods and under constant stress.

Materials and Sizes

Both hitch pins and clevis pins are available in various materials, including stainless steel, carbon steel, and other durable metals. However, the choice of material often aligns with the intended use. For example, stainless steel clevis pins are favoured in corrosive environments due to their resistance to rust and long-lasting durability. Hitch pins come in a broader range of sizes compared to clevis pins, which allows for more flexibility in choosing the correct size for specific towing tasks.

Conclusion

In summary, while both hitch pins and clevis pins serve the fundamental purpose of fastening components, their differences in design, application, and mechanical properties make each uniquely suited for particular tasks. Hitch pins offer ease of use and quick implementation, ideal for towing and agricultural equipment, while clevis pins provide robustness and stability used in heavy-duty mechanical linkages and rigging applications. Always consider the specific requirements of your task to select the right pin for achieving optimal performance and safety.

FAQ

1. Can a hitch pin be used as a substitute for a clevis pin?

No, hitch pins and clevis pins serve different purposes and have different designs, making them non-interchangeable in most applications.

2. Are there different types of hitch pins available?

Yes, hitch pins come in various designs and sizes to accommodate different towing and agricultural requirements.

3. What material is best for clevis pins in outdoor applications?

Stainless steel is recommended for outdoor applications due to its resistance to corrosion and durability.

4. Do hitch pins require regular maintenance?

Yes, to ensure safety and longevity, hitch pins should be regularly inspected for wear and tear, and lubricated as necessary.

5. Are there standard sizes for clevis pins?

Clevis pins come in standardized sizes; however, always refer to the manufacturer's specifications to ensure proper fit and performance.

By understanding these differences, you can make informed decisions and ensure that your equipment is both safe and effectively managed.
